How do I load my Labels in the Printer?
Print
Modified on: Wed, Nov 13, 2024 at 2:49 PM
When you first receive your Matt85 printer you will notice that the Cradle is expanded to the maximum width of the printer and is locked into place.

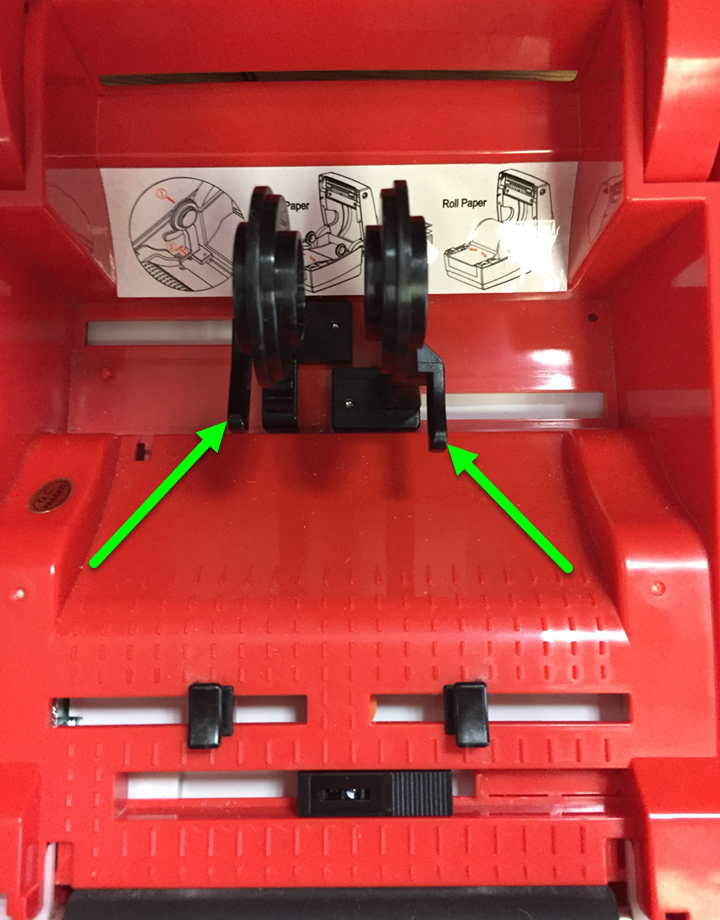

Below is a picture of what it should look like out of the box when opened.

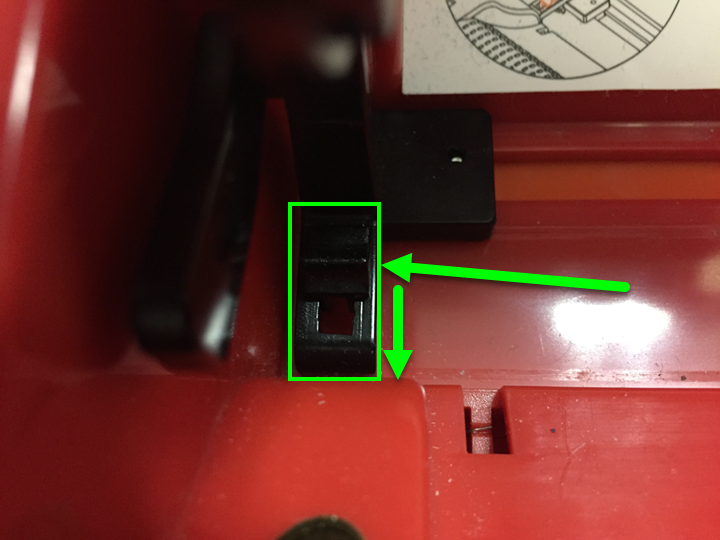

- To unlock the label Cradle, pull the black lever towards the front of the printer on the Left Cradle bar. (see image below) You will also notice on the printer itself there is a black and white illustration on how to do this as well.
- Once this Pin lock has been unlocked the Label Cradle will collapse towards each other.

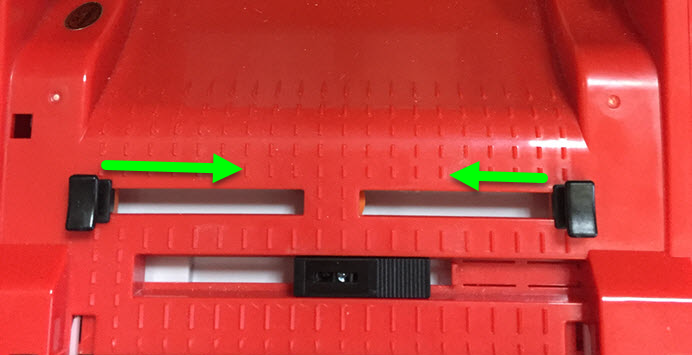

- After your Label Cradle is ready you will need to adjust the Label Guides near the sensor bar. If you move one the other will move. (See image below.)
- After this is completed your Matt85 Printer is ready for some labels and your Label Guides may need a final adjustment.
- To Spread the Label Cradle use the thumb tabs to pull the Cradle apart to insert the Label rolls core onto the Cradle this will result in the labels being held in the air.

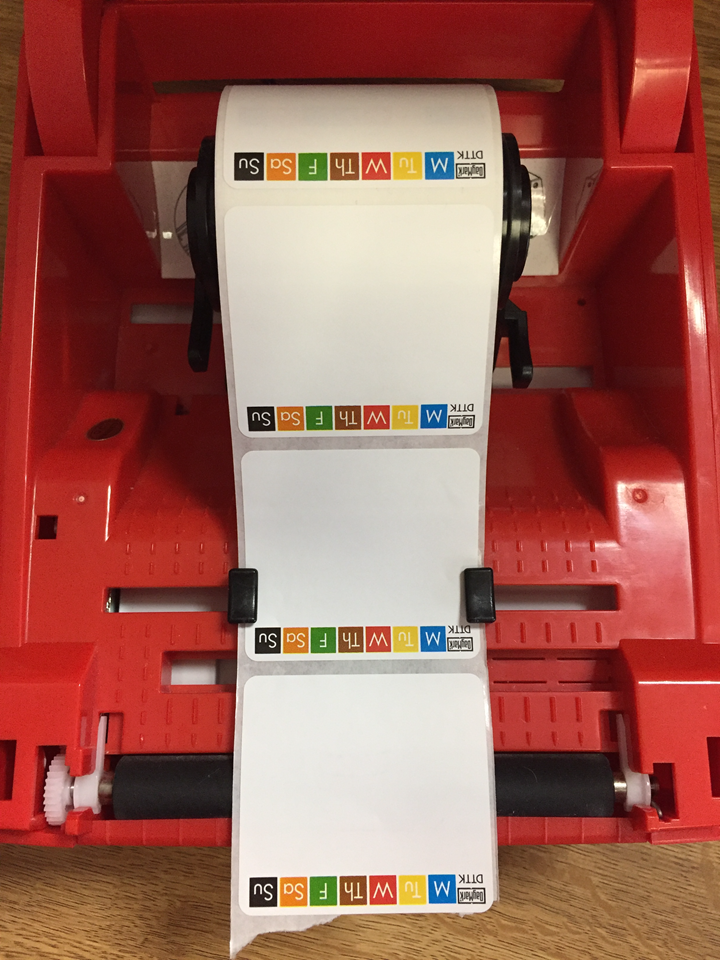

- After you have the Roll in the Cradle feed the labels through the Guides and out of the front of the printer. (See image below for an example.)
